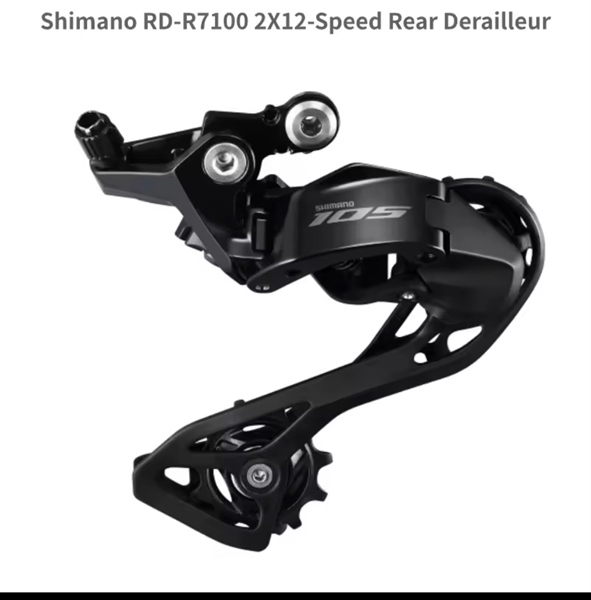

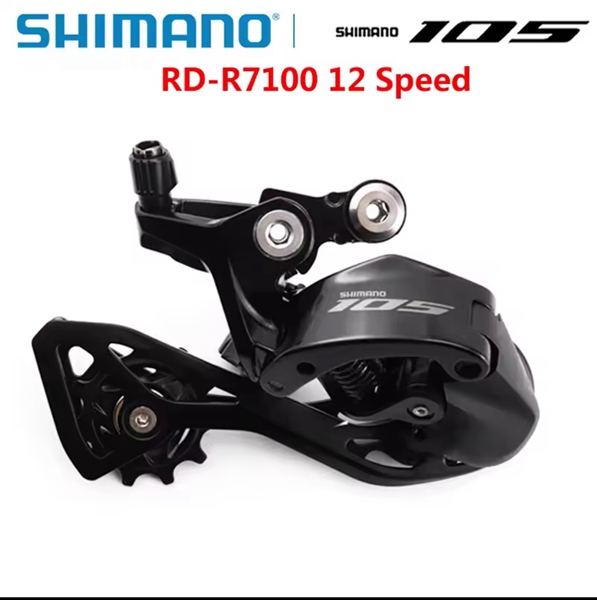

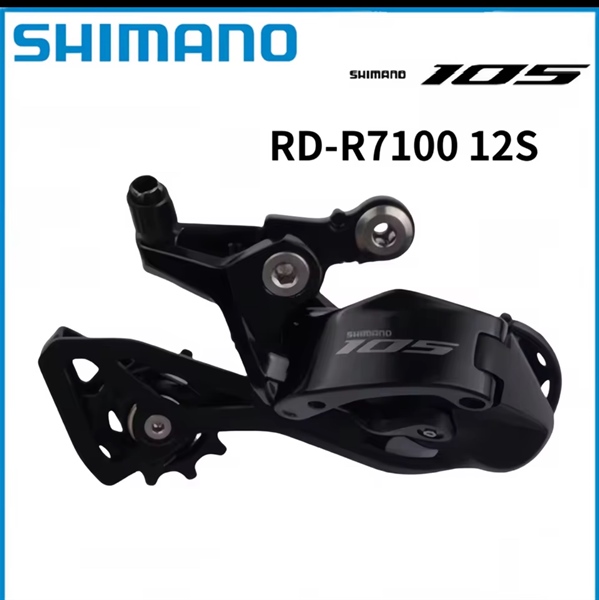

MODEL NO RD-R7100

SERIES SHIMANO 105 R7100 MECHANICAL Series

Color Series color | Series color

Average weight 249

Remarks * w/o bracket spec available

Rear speeds 12 - 12

Compatible chain HG 12-speed

Top-normal spring type|SHIMANO SHADOW RD ✔

Mount|Direct attachment (conventional) ✔

Mount|Direct mount ✔

Cable adjuster ✔

Max. front difference 16T

Total capacity 41T - 41T

Low sprocket|Max. 36T

Low sprocket|Min. 34T

Top sprocket|Max. 11T | 11T

Top sprocket|Min. 11T | 11T

Fluoric coated link bushings 2 | 2

Pulley|Guide pulley bearing ✔

Pulley|Teeth 11T | 11T

Pulley|Sunken type pulley screw ✔
